Baseball Stadium Taipeh, Taiwan

Home run with great sound in front of 20,000 spectators

Referenz

Taiwanese baseball stadium with weatherproof sound system

The baseball stadium in Tianmu, a suburb of Taiwan's capital Taipei, was the main baseball venue for the 2017 Universiade, the largest international sporting event after the Olympic Games. In addition, the stadium features the only baseball field in Taipei City.

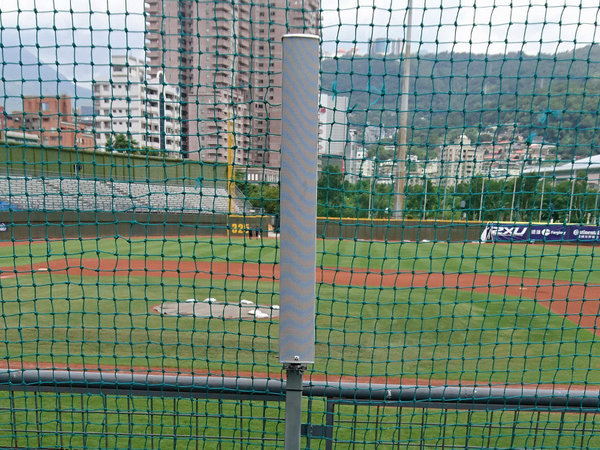

Line array P 08-Pi loudspeakers from the Pan Speaker Series were chosen to provide sound reinforcement for the 20,000-seat stadium. The loudspeakers are characterized by a homogeneous frequency response, sonic naturalness for music and speech in far and near field applications. For this installation all P 08-Pi were manufactured in the weatherproof version to withstand adverse weather conditions. The loudspeaker cabinets are powder-coated in a special color following the customer's wishes so that they blend harmoniously into the stadium.

Ten passive column loudspeakers of the Pan Speaker Series from Pan Acoustics are grouped together and assigned to individual zones of the audience area. Each area can be adjusted in level and required delay independently. This results in a homogeneous and consistent sound image. The final result in terms of sound pressure even exceeded the target originally set! At a listening distance of ten meters between the audience and the loudspeaker, 90 dB SPL was required; the installed sound reinforcement system achieves an average of over 95 dB SPL.

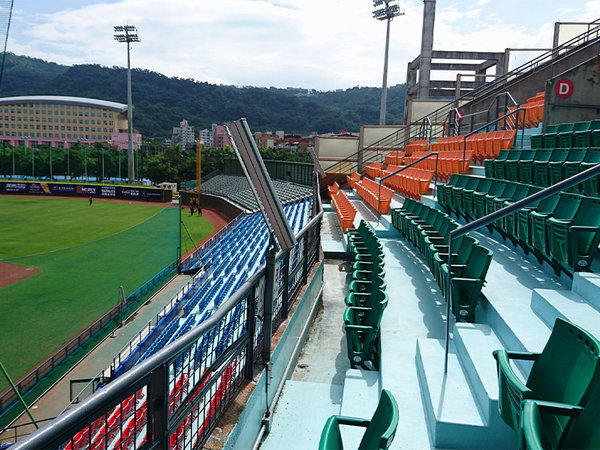

The baseball stadium in Tianmu, a suburb of Taiwan's capital Taipei
Baseball stadium Taipeh
Baseball stadium Taipeh
Baseball stadium Taipeh
Baseball stadium Taipeh
Baseball stadium Taipeh
Baseball stadium Taipeh
Baseball stadium Taipeh
