Products » PAN Speaker » P 6.5-CM | 100 V

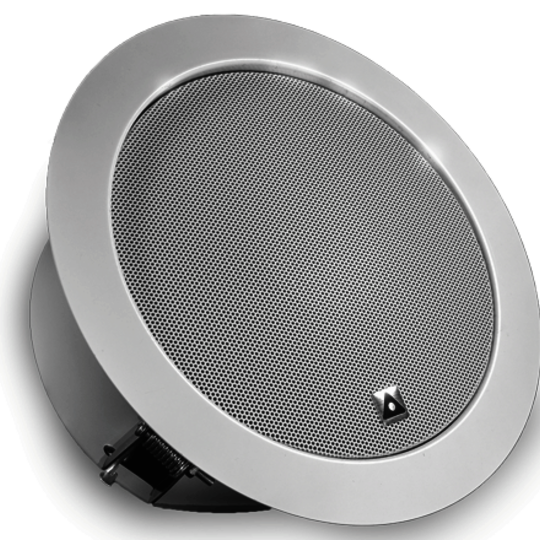

The Pan Speaker P 6.5-CM | 100 V is a passive in-ceiling loudspeaker in corrosion-proof metal design for speech and music applications. The Pan Speaker P 6.5-CM | 100 V is characterised by precise and natural reproduction. The speaker is equipped with a moisture impregnated, UV-resistant 2-way coaxial speaker, 1 x 6.5" HQ woofer driver and 1 x 1" HQ tweeter unit. The P 6.5-CM | 100 V has different power taps (100 V): 100% | 50 % | 25 %, which can be tapped via a terminal block.
| Configuration: | passive ceiling loudspeaker |
| Frequency response: | 55 Hz - 21 kHz |
| Drivers: | 1 x 6.5" HQ / 1 x 1" HQ |
| Power: | 20W/ 10W/ 5W |
| Dimensions (Ø outside x Ø inside x H): | 218 x 198 x 94 [mm] |
Individual lacquering / colouring in the RAL system. Other colour systems such as RAL design, Pantone etc. are possible on request.
Individual cabinet length of the speaker is possible. The enclosures of the Pan Speaker series can be customised to customer dimensions.
Analog audio inputs with balanced signal routing
Digital audio input: supports 2 x AES/EBU (AES3) and 1 x anlaog audio (failover function)
Digital audio network DANTE incl. AES67 support. Supports redundant network structure with Pan Net control and 1 x analogue audio (failover function).
100V audio inputs with different power taps.
Pilot tone evaluation for integration in SAA/ ENS systems.
Pan Net - Pan Acoustics' proprietary control and monitoring protocol.
General Purpose Output (GPO) Switchable contact e.g. for status request by means of downstream media control.
Priority switching - Automatic switching of the audio inputs, e.g. between program and announcement.
DC input for operation on emergency power supplies.
Weatherproofing of the loudspeakers can be achieved via protection classes IP54 or IP65 (depending on the model).
Accessories such as wall, stand and ceiling mounts, various interfaces, connection cables, weather protection hoods and connection sets are available.
Ball throwing safety
Pan Acoustics' products are defined by natural sound and appealing design.
How practical: structured cabling is usually available in meeting rooms, since multimedia meetings are no longer conceivable today without the appropriate IT infrastructure. It is precisely this CAT cabling that Pan Acoustics takes advantage of by connecting the speakers directly via RJ45 to compatible PoE amplifiers as well as to any power amplifiers via an available adapter plug.
The loudspeakers with RJ option can thus be installed without the use of any tools.
Pan Acoustics is making available its new EQ setting package for DSP power amplifiers for the Pan Speaker, Pan AMT and passive variants of the Pan Subwoofer models.
With the first release, the following DSP power amplifiers are supported: Lab.Gruppen IPD 1200 and IPD 2400 as well as the Powersoft series Duecanali, Quattrocanali, Ottocanali in the DSP+D version and the Mezzo series. The EQ setting packages are available for download.
