PAN ACOUSTICS - THE SOUND SPECIALIST FOR CRYSTAL-CLEAR communicatION
IN ACOUSTICALLY challengING ENVIRONMENTS. Benefit from the innovative
developments of The legendary PAN technologies from our german -
Lower Saxony manufacture.
Sold on the Pan Speaker series.
The Pan Speaker Series was born out of the ambition to create a passive speaker series with the highest level of speech intelligibility and music reproduction in a perfectly formed design. This product line is characterized by its ease of use and excellent sound even in demanding applications.
Consulting | Planning support | Commissioning | Workshops
You need the right sound reinforcement solution for your project or are looking for support in choosing the right products? You don't get anywhere with off-the-shelf loudspeakers and are dependent on a special design? Would you like to learn more about our products and audio technologies?
We are here for you!
Products » PAN Speaker » P 16-Pi
Churches, museums, live sound reinforcement, train stations, airports, sports facilities, parliaments, conference rooms, lecture halls, shopping malls, audio/video presentation rooms.
read moreThe Pan Speaker P 16-Pi is a passive line source speaker in an attractive, compact line design for speech and music applications. The Pan Speaker P 16-Pi is characterized by precise and natural reproduction. The speaker contains 16 x 3.5" HQ drivers in a line array. The cabinet is made of aluminum and can be painted in any color according to customer requirements. The drivers are protected from external influences by a perforated plate integrated into the design. A 5-pin connector is located at the rear of the P 16-Pi. The optional mounting accessories (wall, ceiling and stand brackets) can be mounted on the side grooves and the rear groove by means of a sliding block.
| Configuration: | passive line source |
| Frequency range: | 80 Hz - 18 kHz |
| Drivers: | 16 x 3.5" HQ |
| Power: | 800 W (Peak 20ms)/ 600 W (Program)/ 300 W (Nominal) |

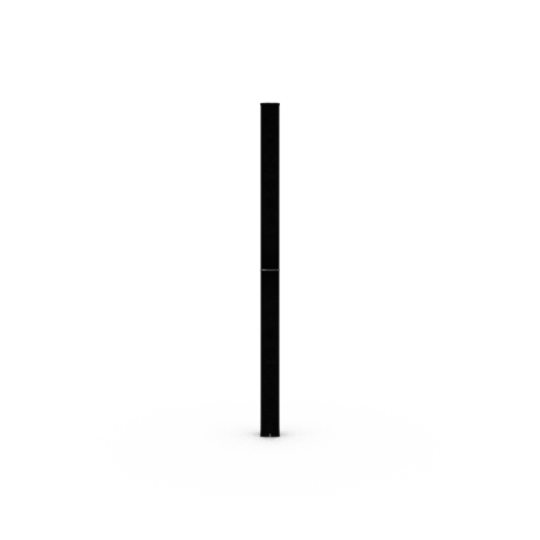

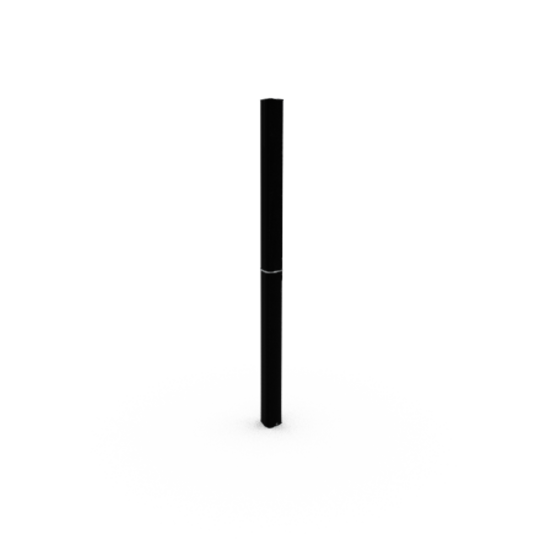

Dimensions (H x W x D): | 1812 x 107 x 118 [mm] // 2-modules 1806 x 107 x 118 [mm] // one housing |
Individual lacquering / colouring in the RAL system. Other colour systems such as RAL design, Pantone etc. are possible on request.
Individual cabinet length of the speaker is possible. The enclosures of the Pan Speaker series can be customised to customer dimensions.
Analog audio inputs with balanced signal routing
Digital audio input: supports 2 x AES/EBU (AES3) and 1 x anlaog audio (failover function)
Digital audio network DANTE incl. AES67 support. Supports redundant network structure with Pan Net control and 1 x analogue audio (failover function).
100V audio inputs with different power taps.
Pilot tone evaluation for integration in SAA/ ENS systems.
Pan Net - Pan Acoustics' proprietary control and monitoring protocol.
General Purpose Output (GPO) Switchable contact e.g. for status request by means of downstream media control.
Priority switching - Automatic switching of the audio inputs, e.g. between program and announcement.
DC input for operation on emergency power supplies.
Weatherproofing of the loudspeakers can be achieved via protection classes IP54 or IP65 (depending on the model).
Accessories such as wall, stand and ceiling mounts, various interfaces, connection cables, weather protection hoods and connection sets are available.
Ball throwing safety
Pan Acoustics' products are defined by natural sound and appealing design.
How practical: structured cabling is usually available in meeting rooms, since multimedia meetings are no longer conceivable today without the appropriate IT infrastructure. It is precisely this CAT cabling that Pan Acoustics takes advantage of by connecting the speakers directly via RJ45 to compatible PoE amplifiers as well as to any power amplifiers via an available adapter plug.
The loudspeakers with RJ option can thus be installed without the use of any tools.
Pan Acoustics is making available its new EQ setting package for DSP power amplifiers for the Pan Speaker, Pan AMT and passive variants of the Pan Subwoofer models.
With the first release, the following DSP power amplifiers are supported: Lab.Gruppen IPD 1200 and IPD 2400 as well as the Powersoft series Duecanali, Quattrocanali, Ottocanali in the DSP+D version and the Mezzo series. The EQ setting packages are available for download.
